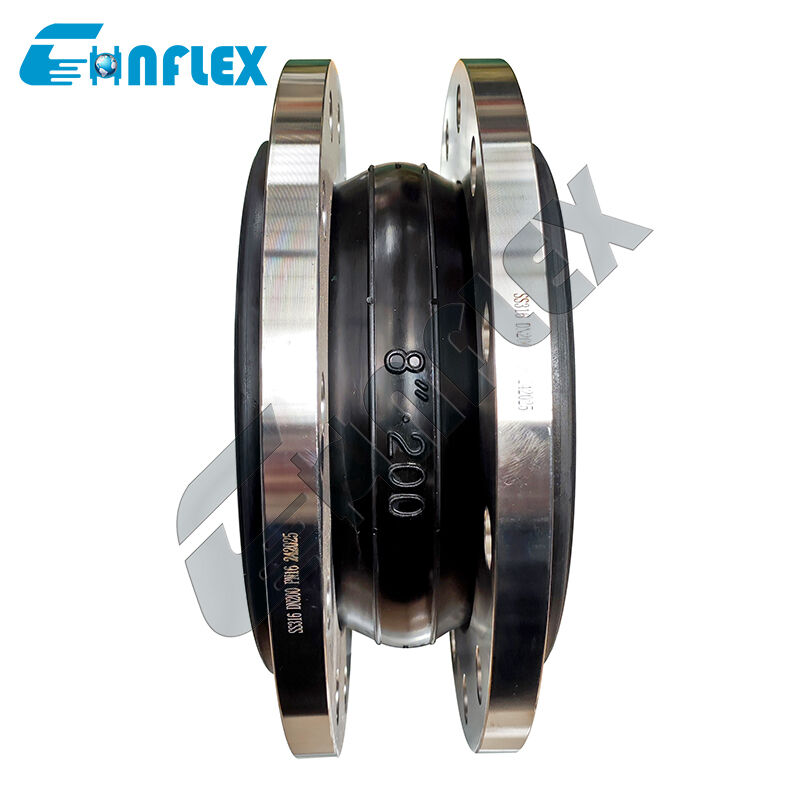

High Pressure Resistant Expansion Joint Manufacturers In Piping Customized
Product Description
Performance characteristics
1. Flexibility: Accommodates axial, lateral, and angular movements.
2. Durability: Expansion Joint Manufacturers provides long-lasting performance.
3. Corrosion Resistance: Resists aggressive environments and chemicals.
4. Noise & Vibration Reduction: Dampens vibrations and shock waves.
5. Ease of Installation & Maintenance: Compact design and standard flange connections facilitate installation and upkeep.
Product Specification
| Size | Length | Allowable Movements in Operation | ||||
| mm | inch | mm | Axial Compression mm | Axial Extension mm |
Transverse Movement mm |
Angular Deflection mm |
| 25 | 1 | 130/152 | 20 | 12 | 14 | 15° |
| 32 | 1 1/4 | 95/130/152 | 20 | 12 | 14 | 15° |
| 40 | 1 1/2 | 95/130/152 | 20 | 12 | 14 | 15° |
| 50 | 2 | 105/130/152 | 20 | 12 | 14 | 15° |
| 65 | 2 1/2 | 115/130/152 | 20 | 12 | 14 | 15° |
| 80 | 3 | 130/135/152 | 20 | 12 | 14 | 15° |
| 100 | 4 | 130/152 | 20 | 12 | 14 | 15° |
| 125 | 5 | 130/152/165 | 20 | 12 | 14 | 15° |
| 150 | 6 | 130/152/185 | 20 | 12 | 14 | 15° |
| 200 | 8 | 130/152/210 | 20 | 12 | 14 | 15° |
| 250 | 10 | 130/203/230 | 20 | 12 | 14 | 15° |
| 300 | 12 | 130/203/245 | 25 | 16 | 22 | 15° |
| 350 | 14 | 200/255 | 25 | 16 | 22 | 15° |
| 400 | 16 | 200/255 | 25 | 16 | 22 | 15° |
| 450 | 18 | 200/255 | 25 | 16 | 22 | 15° |
| 500 | 20 | 200/255 | 25 | 16 | 22 | 15° |
| 600 | 24 | 260 | 25 | 16 | 22 | 15° |
| 700 | 28 | 260 | 25 | 16 | 22 | 15° |
| 800 | 32 | 260 | 25 | 16 | 22 | 15° |
| 900 | 36 | 260 | 25 | 16 | 22 | 15° |
| 1000 | 40 | 260/300 | 25 | 16 | 24 | 15° |
| 1100 | 44 | 300 | 25 | 16 | 24 | 15° |
| 1200 | 48 | 300 | 25 | 16 | 24 | 15° |
|
Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering |
Product Details
Production Flow
|
1.Raw material Top level CR/EPDM/NBR rubber raw materials, No recycled rubber |
2.Plasticating and mixing Special Formulation for better Bending with Nylon,For Better Strength,Sealing |
3.Workblanks wraping Cooper plated steel wire reinforcement prevent pull off |
|
4.Vulcanizing Automatic vulcanization machine ensure vulcanization time and pressure |
5.Inspecting |
6. Packaging |
Application
Expansion Joint Manufacturers are widely used in various fields, including construction, chemical industry, shipbuilding, tap water, gas, chemical pipelines, petroleum pipelines, food pipelines, air conditioning pipelines, and sewage treatment.
Our Services
1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure, packaging)
7.Long warranty period
8.Suitable packaging for transportation
Our Customer
Certificate
FAQ
Q1:What’s the material of Expansion Joint Manufacturers?
A1:The material can be EPDM,NBR,CR,SBR..It depends on the working condition.
Q2:What’s the warranty period of Expansion Joint Manufacturers?
A2:We provide 18 months’ warranty.
Q3:What’s the working temperature of Expansion Joint Manufacturers?
A3:The working temperature is -20℃~100℃.
Q4:What’s the package of Expansion Joint Manufacturers?
A4:The package is carton box and strong plywooden case.
